Wood-free woodworking: Composite lumber for fine outdoor projects

If you’ve got an outdoor wood project in mind, here’s an approach to making it with something other than wood. I’ll start with a story …

A number of years ago, two local heroes were being celebrated in the little town near my home, and the commemoration included a couple of engraved granite plaques. Trouble was, the half-inch-thick stone was too thin to be drilled and mounted directly onto a building. Without a frame of some kind to support the plaques and provide a mounting surface for bolts, the granite would crack.

Wood was suggested as a frame material, but I didn’t like that.

Meeting the outdoor “wood” challenge

If community volunteers ever neglected to maintain the wooden frames regularly over the years, they would weather, crack and turn grey. And is ratty wood any way to honour a person who’s received the Order of Canada? No, something completely maintenance-free was needed, and that’s what got me thinking about leftover Trex I’d stacked behind my workshop.

Trex is one of a handful of non-hollow composite materials, made by various companies from a 50/50 blend of recycled plastic and wood fibres. The feedstock is typically plastic shopping bags and old wooden shipping pallets.

The granite-like appearance of Trex proved to be a perfect complement to the actual granite of the engraved plaques, and I know from experience that composites weather well. Even after a decade of sun and weather, the only change is a slight fading of colour.

But as durable as it is, it didn’t take long for me to discover that the slight warps and cups in each composite board would make any kind of fine craftsmanship impossible, at least until these issues were fixed, that is. Though irrelevant in a deck, this distortion is a deal breaker in finer work.

But then I discovered something new about composites.

Working with composites as wood

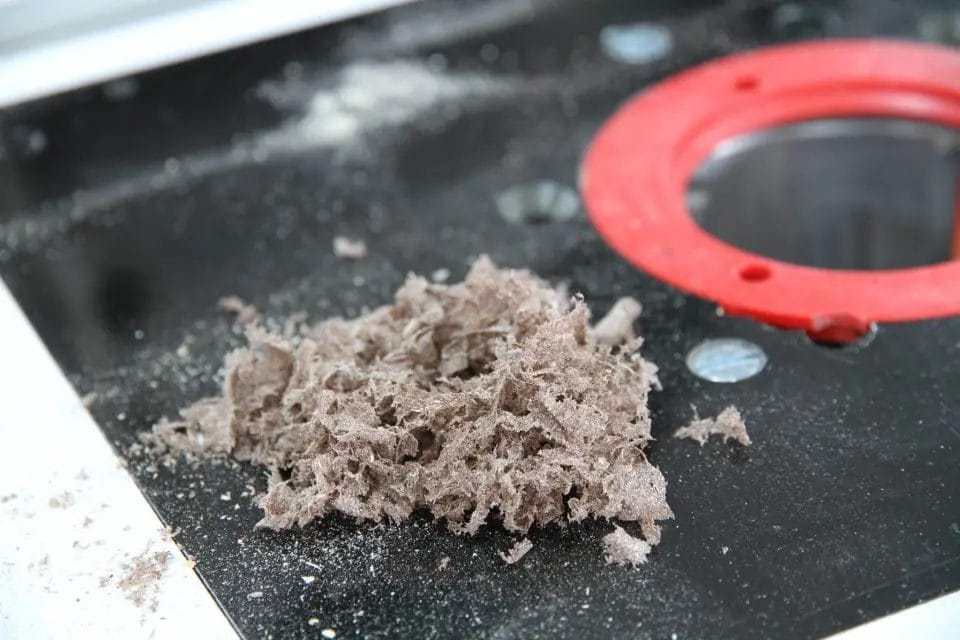

These router shavings come from Trex I used for the frame shown above. This material mills as well as wood, with none of the melting you might expect working with plastic.

The same jointing, planing and routing operations that create the kind of smooth, flat, square wooden boards necessary for cabinets, tables and shelves also work on composites. In fact, they work even better than on wood.

Composites are so stable, consistent and machinable that they mill like a dream. There’s no melting of the plastic component while cutting, planing or routing, and it doesn’t seem to dull tools any faster than wood.

After rough-cutting composite boards to length and width, the jointer did an astonishing job creating flat surfaces and square edges on formerly concave Trex boards. My thickness planer also milled the blanks down to perfect final thickness, though I was still left with a big question: How could I securely join outdoor materials that were 50 per cent plastic in a high-stakes situation?

Joining composite parts

I ran this piece of Trex composite over my jointer to create a flat face, as I would with any piece of rough lumber.

I knew that ordinary wood glue would never hold, but what about polyurethane adhesives? How about PVC cement? Construction adhesive? In the end, after trying several options, I settled on epoxy because it worked so well in my tests.

I originally tried a five-minute formulation, and though it holds composite securely, I needed more assembly time. A four-hour epoxy proved perfect, and that’s what I used on the frames here.

Just give it at least two or three days to cure. Try to sand off excess glue any sooner than that and it’ll clog up your abrasives way too fast.

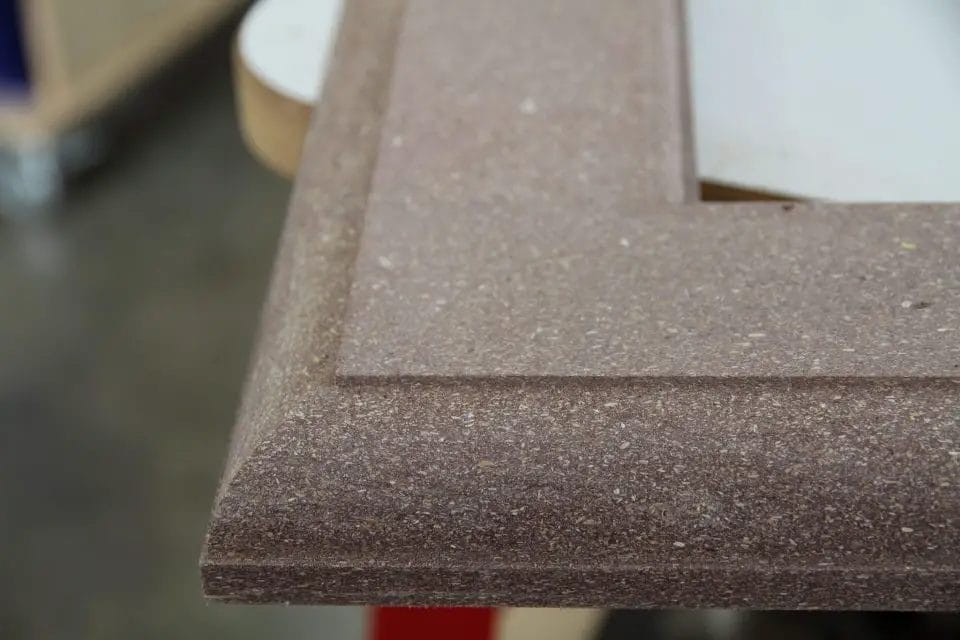

This cope-and-style corner is actually made of two pieces joined seamlessly. I’m surprised at how well this turned out. Composite materials can be joined very accurately.

The cope-and-stile joinery I used for my frames needed nothing more than glue for a secure joint. My tests showed that for sure. Even bashing assembled test joints with a hammer could not break them apart. If your projects include butt joints and mitres, you’ll need to add some kind of mechanically interlocking connection like dowels or biscuits. Screw joints work fine for low-stress situations and are easy to hide using tapered plugs made out of composite.

Tapered composite plugs

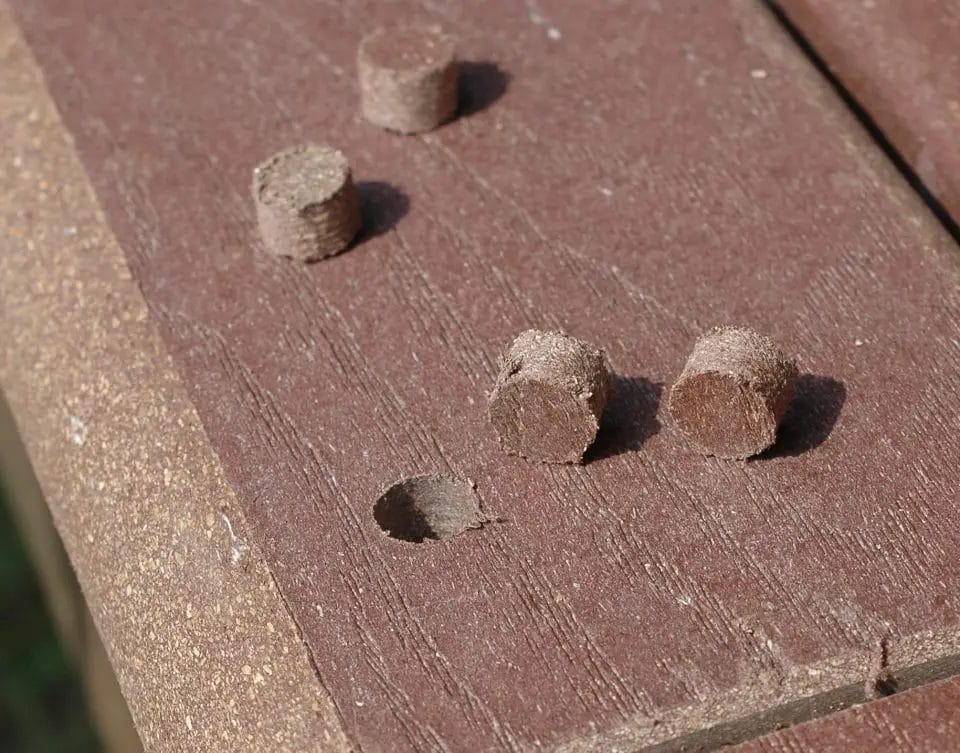

I cut these tapered plugs with a special bit in a drill press. Sized just right to fit the counterbored holes, they pretty much disappear when driven into place.

You can make your own shop-cut tapered plugs from composite just like with regular wood. They’re perfect for concealing counterbored screws and blend seamlessly with neighbouring surfaces. Chuck a tapered plug cutter into your drill press, then place a piece of composite underneath that’s about 1/16-inch thicker than the length of plugs you’ll be making.

Plunge the spinning cutter down into the composite until you’ve made all the plugs you need, then switch off the machine, pick up the block, and break the plugs out with your fingers as needed.

Although regular wood glue doesn’t bond composites strongly enough for use on structural joints, it does hold tapered wood plugs effectively in their holes. Single-part glue is also a lot handier to use than two-part epoxy that needs mixing. Weatherproof wood glue also endures well outdoors.

Once you realize that composites can be jointed, planed, milled and glued with precision, it becomes possible to build weather-tough display frames, boxes, birdhouses, cabinets, work surfaces and even fine outdoor furniture.

Of course, composites will never take the place of real wood, but they’re a pretty good alternative when water, weather and sun are working against you.
